Optical Modeling

  • Advanced design services for optical semiconductor components

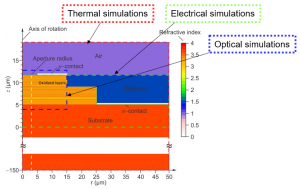

  • Thermal, electrical, optical simulations
  • Modeling of integrated optical designs.
  • 3D simulation tools for semiconductor structures applied to a wide range of devices, e.g. light emitting diodes (LED) or vertical cavity surface emitting laser (VCSEL).
    Simulation includes electromagnetic fields, far-field profiles, lifetimes of optical modes, leakage losses and more…

You can read more about our simulation methods in our recent Photonics West 2019 publication:

Comprehensive self-consistent analysis of oxide-confined vertical-cavity surface-emitting lasers

Proceedings Volume 10938, Vertical-Cavity Surface-Emitting Lasers XXIII; 109380N (2019) https://doi.org/10.1117/12.2509583
Event: SPIE OPTO, 2019, San Francisco, California, United States

-----

Results of our Modeling were also published recently in Journal of Quantum Electronics. In this paper we report the observation of narrow tilted lobes in the far-field emission pattern of leaky oxide-confined vertical-cavity surface-emitting lasers (VCSELs), confirming very accurate predictions of 3D modeling.

Direct Evidence of the Leaky Emission in Oxide-Confined Vertical Cavity Lasers
in IEEE Journal of Quantum Electronics, vol.52, no.3, pp.1-7,  (2016)
doi: 10.1109/JQE.2016.2518081
See more technologies developed at VI Systems GmbH on our Technology Transfer page.

Simulated electric field intensity of two optical modes
Simulated electric field intensity of two optical modes
Simulated electric field intensity distribution in a leaky VCSEL
Simulated electric field intensity distribution in a leaky VCSEL
